CN-8012:Profibus-DP Network adaptor,32 slots

Adapter Hardware Specifications

System Power

• Nominal Reverse Protection: Yes
• Voltage: 24V DC (Range: 9-36V DC)
• Power Consumption: 30mA @ 24V DC

Internal Bus Supply

• Current Max: 2.5A @ 5V DC
• Isolation: System Power to Field Power
• Power Supply Nominal: 24V DC (Range: 22-28V DC)
• Field Power Current Max: 8A DC

General Specifications

• IO Modules Supported: 32 pcs
• Wiring: Max. 1.5mm² (AWG 16)
• Mounting Type: 35mm DIN-Rail

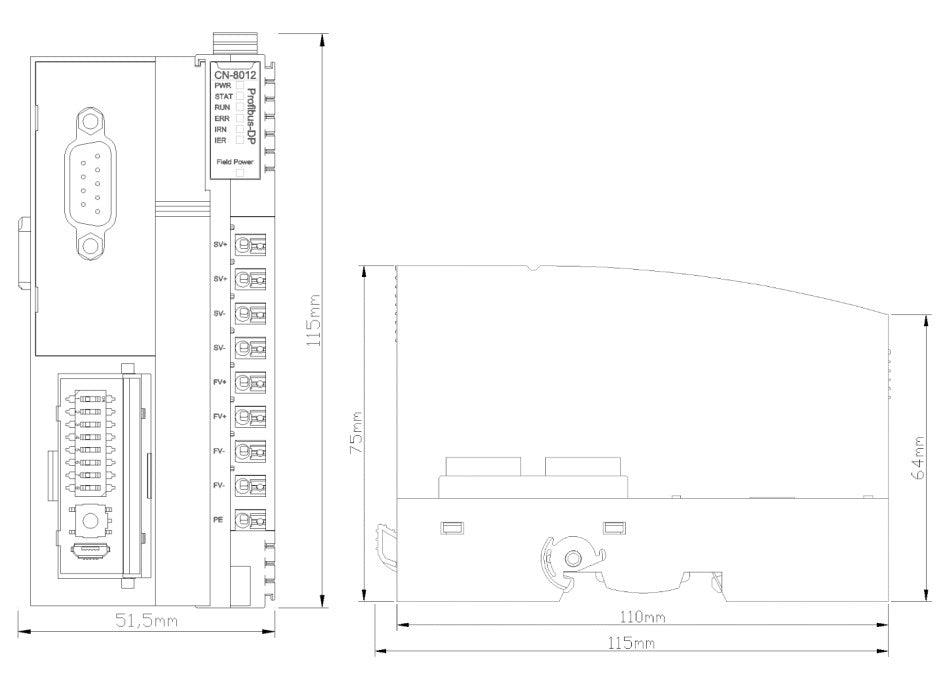

• Size: 115 x 51.5 x 75 mm
• Weight: 130g

Environmental Specifications

• Operating Temperature: -40 to 85℃
• Operating Humidity: 5% - 95% (No Condensation)
• Protection Class: IP20

Profibus-DP Specifications

Protocol

• Type: PROFIBUS DPV0
• Interface Type: DB9 Female Head
• Station Type: PROFIBUS Slave
• Station Address: Dial Code Switch Configuration
• Topology: Bus Topology

Data Specifications

• Configuration Max. Length: 232 bytes
• IO Data Max. Length:
  • Input: Max. 244 bytes
  • Output: Max. 244 bytes
  • Sum of Input and Output: Max. 288 bytes
