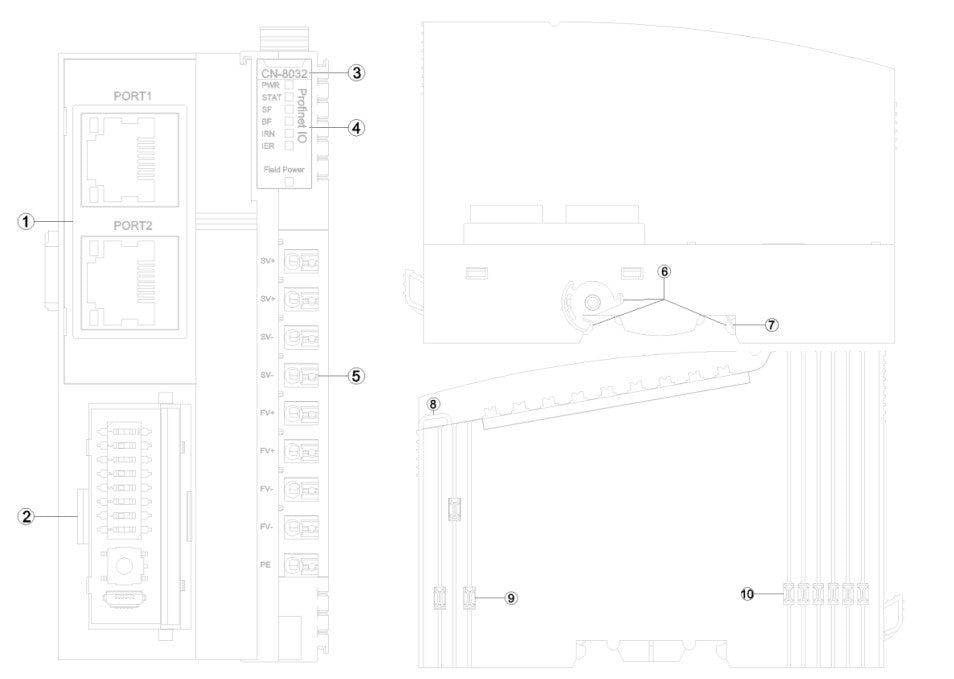

CN-8032:Profinet Network Adaptor, 32 slots

Product Characteristics

ODOT CN-8032 Profinet Network Adapter

The CN-8032 Profinet Network Adapter supports standard Profinet IO Device Communication. It is equipped with MRP media redundancy, enabling ring network redundancy. The adapter also supports RT/IRT real-time and synchronous communication modes, with RT communication at a minimum period of 1ms and IRT synchronous communication at a minimum period of 250µs. It supports a maximum input of 1440 bytes, a maximum output of 1440 bytes, and up to 32 extended IO modules.

Technical Parameters

Hardware Specifications

• System Power:
  • Nominal Voltage: 24V DC
  • Voltage Range: 9-36V DC
  • Reverse Protection: Yes
• Power Consumption: 110mA @ 24V DC
• Current Output: Max: 2A @ 5V DC
• Isolation: System Power to Field Power Isolation
• Field Power:
  • Nominal Voltage: 24V DC
  • Voltage Range: 22-28V DC
  • Reverse Protection: Yes
• Field Power Contact: Max: 8A
• Expansion Module: 32 Slots
• Wiring: Max. 1.5mm² (AWG 16)
• Mounting Type: 35mm DIN-Rail
• Size: 115 x 51.5 x 75mm
• Weight: 130g

Environmental Specifications

• Operational Temperature: -40°C to 85°C
• Operational Humidity: 5% to 95% (No Condensation)
• Protection Class: IP20

Profinet Parameters

• Protocol: Profinet IO Device
• I/O Data Size:
  • Input: Max. 1440 Bytes
  • Output: Max. 1440 Bytes
• Real-Time (RT) Communication: Yes, Min. 1ms
• Isochronous Real-Time (IRT) Communication: Yes, Min. 250µs
• Media Redundancy Protocol (MRP): Yes
• Media Redundancy for Planned Duplication (MRPD): No
• Network Interface: RJ45 x 2
• Speed: 10/100Mbps, MDI/MDIX, Full-Duplex
• Maximum Distance: 100m
• Profinet Device Name Configuration: DIP switch setting or Profinet monitor modification
