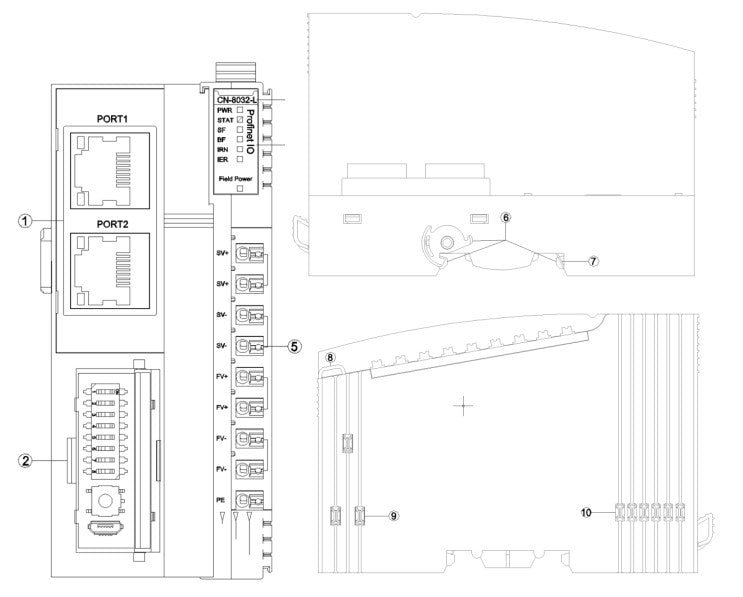

CN-8032-L:Profinet Network Adaptor, 32 slots

Hardware Specifications

System Power

• Nominal Voltage: 24V DC
• Voltage Range: 9-36V DC
• Reverse Protection: Yes
• Power Consumption: 110mA @ 24V DC

Current Output

• Maximum: 2A @ 5V DC

Isolation

• Type: System Power to Field Power Isolation

Field Power

• Nominal Voltage: 24V DC
• Voltage Range: 22-28V DC
• Reverse Protection: Yes
• Field Power Contact: Max. 8A

Expansion Module

• Slots: 32

Wiring

• Maximum Size: 1.5mm² (AWG 16)

Mounting Type

• Type: 35mm DIN-Rail

Size

• Dimensions: 115 x 51.5 x 75mm

Weight

• Weight: 130g

Environmental Specifications

Operational Temperature

• Range: -40°C to 85°C

Operational Humidity

• Range: 5% to 95% (No Condensation)

Protection Class

• Class: IP20

Profinet Parameters

Protocol

• Type: Profinet IO Device

I/O Data Size

• Maximum Input: 1440 Bytes
• Maximum Output: 1440 Bytes

Real-Time (RT) Communication

• Support: Yes, Min. 1ms

Isochronous Real-Time (IRT) Communication

• Support: Yes, Min. 250µs

Media Redundancy Protocol (MRP)

• Support: Yes

Media Redundancy for Planned Duplication (MRPD)

• Support: No

Network Interface

• Type: RJ45 x 2
• Speed: 10/100Mbps, MDI/MDIX, Full-Duplex
• Maximum Distance: 100m

Profinet Device Name Configuration

• Methods: DIP switch setting or Profinet monitor modification
