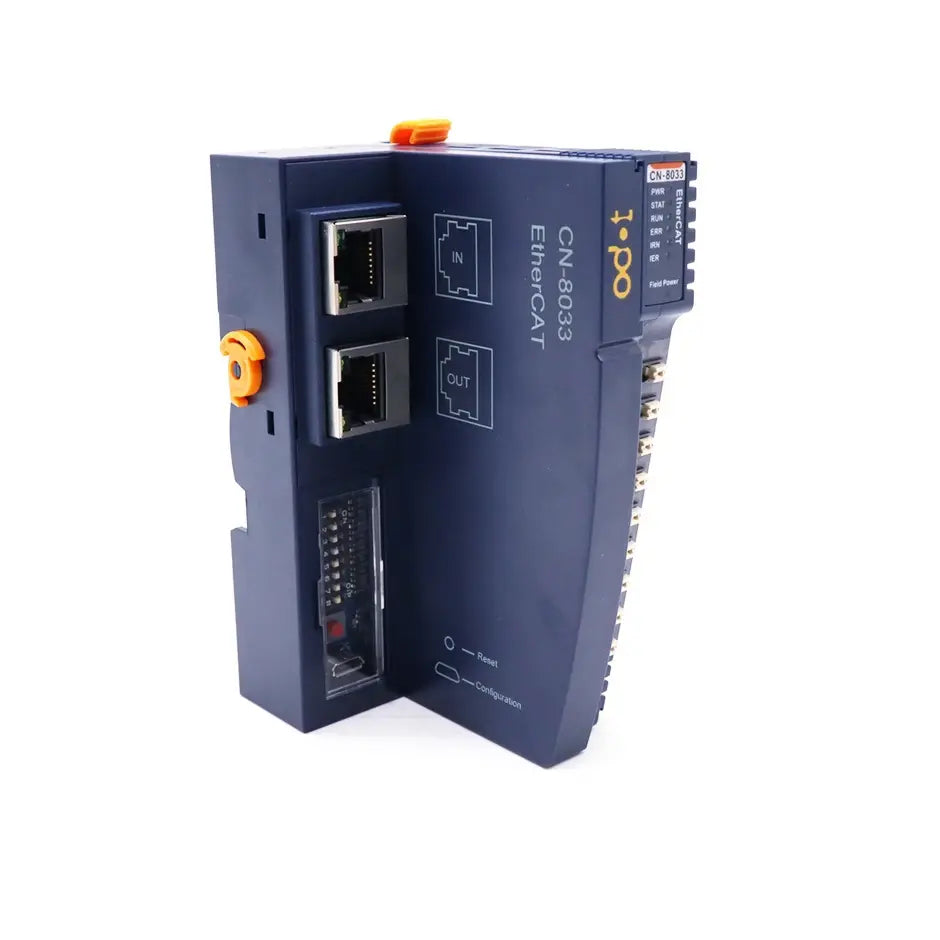

CN-8033:EtherCAT Network Adaptor,32 slots

Hardware Specifications

System Power

• Nominal Voltage: 24V DC
• Voltage Range: 9-36V DC
• Protection:
  • Overcurrent Protection
  • Reverse Protection: Yes
• Power Consumption: 110mA @ 24V DC
• Internal BUS Supply Current: Max. 2A @ 5V DC
• Isolation: System Power to Field Power Isolation

Field Power Supply

• Voltage Range: 22-28V (Nominal 24V DC)
• Current: Max. DC 8A

I/O Modules Supported

• Number of Modules: 32 pcs

Wiring

• Maximum Size: 1.5mm² (AWG 16)

Mounting Type

• Type: 35mm Size DIN-Rail

Size

• Dimensions: 115 x 51.5 x 75mm

Weight

• Weight: 130g

Environmental Specifications

Operational Temperature

• Range: -40°C to 85°C

Operational Humidity

• Range: 5% to 95% RH (Condensation)

Protection Level

• Class: IP20

EtherCAT Parameters

Protocol

• Type: EtherCAT

Process Data Area

• Input: Max. 1024 Bytes
• Output: Max. 1024 Bytes

Network Interface

• Type: 2 x RJ45
• Speed: 10/100Mbps, MDI/MDIX, Full-Duplex
• Maximum Bus Length: 100m
