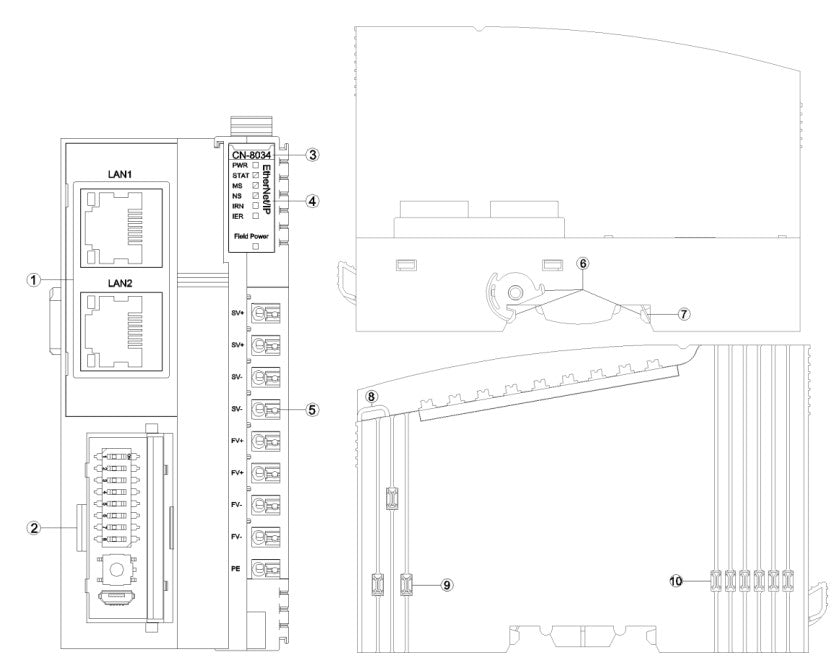

CN-8034:Ethernet/IP Network Adaptor, 32 slots

Product Characteristics

ODOT CN-8032 Network Adapter

The CN-8032 Network Adapter is compatible with CODESYS V3.5 and supports Ethernet/IP communication. The adapter provides robust connectivity with features like overcurrent protection and reverse protection, ensuring reliable performance. It supports a range of up to 32 I/O modules and offers versatile installation options.

Technical Parameters

Hardware Specifications

• System Power:
  • Nominal Voltage: 24V DC
  • Voltage Range: 9-36V DC
  • Protection:
    • Overcurrent Protection
    • Reverse Protection: Yes
• Power Consumption: 110mA @ 24V DC
• Internal BUS Supply Current: Max. 2A @ 5V DC
• Isolation: System Power to Field Power Isolation
• Field Power Supply:
  • Voltage Range: 22-28V (Nominal 24V DC)
  • Current: Max. DC 8A
• I/O Modules Supported: 32 pcs
• Wiring: Max. 1.5mm² (AWG 16)
• Mounting Type: 35mm Size DIN-Rail
• Size: 115 x 51.5 x 75mm
• Weight: 130g

Environmental Specifications

• Operational Temperature: -40°C to 85°C
• Operational Humidity: 5% to 95% RH (No Condensation)
• Protection Level: IP20

Ethernet/IP Parameters

• Protocol: Ethernet/IP
• Max. Input Length: 504 Bytes per assembly instance
• Max. Output Length: 504 Bytes per assembly instance
• Max. Number of Explicit Message Connections: 10
• Max. Number of Implicit Message Connections: 5
• Max. Number of CIP Connections: 10
• Network Interface:
  • 2 x RJ45
  • Speed: 10/100Mbps, MDI/MDIX, Full-Duplex
  • Max. Bus Length: 100m
