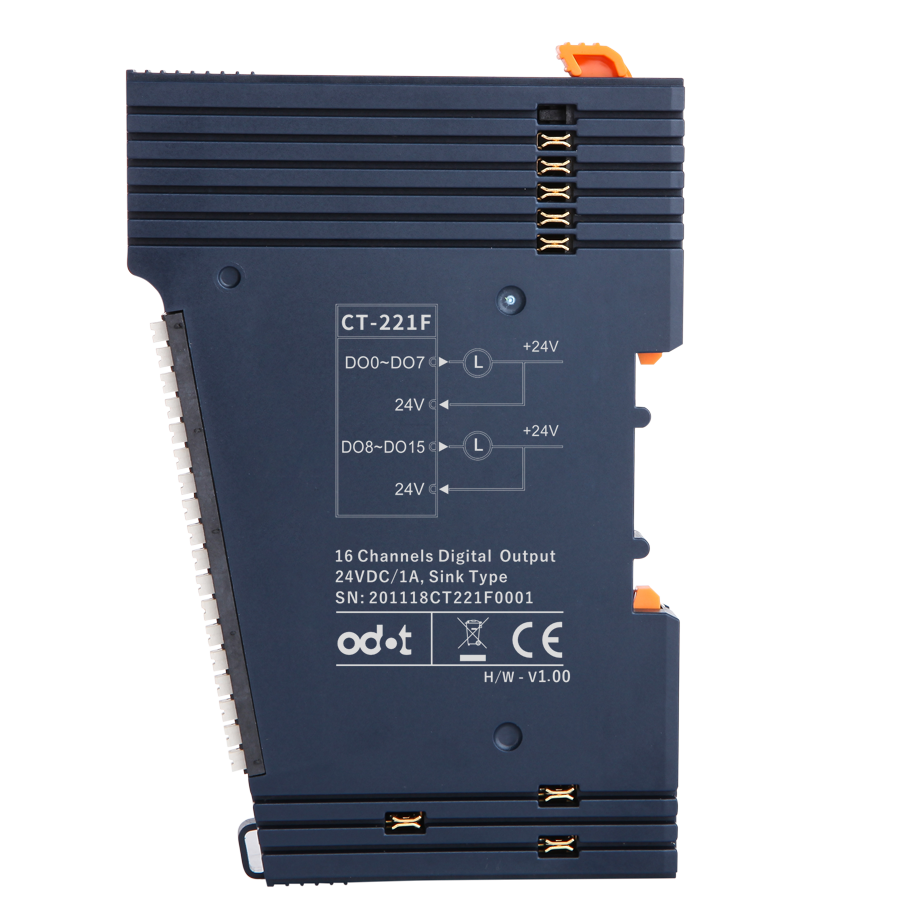

CT-221F:16 channels digital Output/24VDC/0.5A/sink type

General Parameters

Power

• Maximum Consumption: 140mA @ 5.0V DC

Isolation

• Type: I/O to internal bus via opto-coupler isolation (3KVrms)

Field Power

• Nominal Voltage: 24V DC
• Voltage Range: 22-28V DC

VCLAMP Voltage

• Nominal Voltage: 24V DC
• Input Range: 12-36V DC

Wiring

• I/O Wiring: Max. 1.5mm² (AWG 16)

Mounting Type

• Type: 35mm DIN-Rail

Size

• Dimensions: 115 x 14 x 75mm

Weight

• Weight: 65g

Environmental Specifications

Operational Temperature

• Range: -40°C to 85°C

Operational Humidity

• Range: 5% to 95% (No Condensation)

Protection Class

• Class: IP20

Output Parameters

Channel Number

• Channels: 16 channel sink type output

LED Indicator

• Indicator: 16 channel output LED indicator

Rated Current

• Single Channel Output: Max. 1000mA
• Simultaneous Output: Max. 500mA

Leakage Current

• Maximum: 10µA
