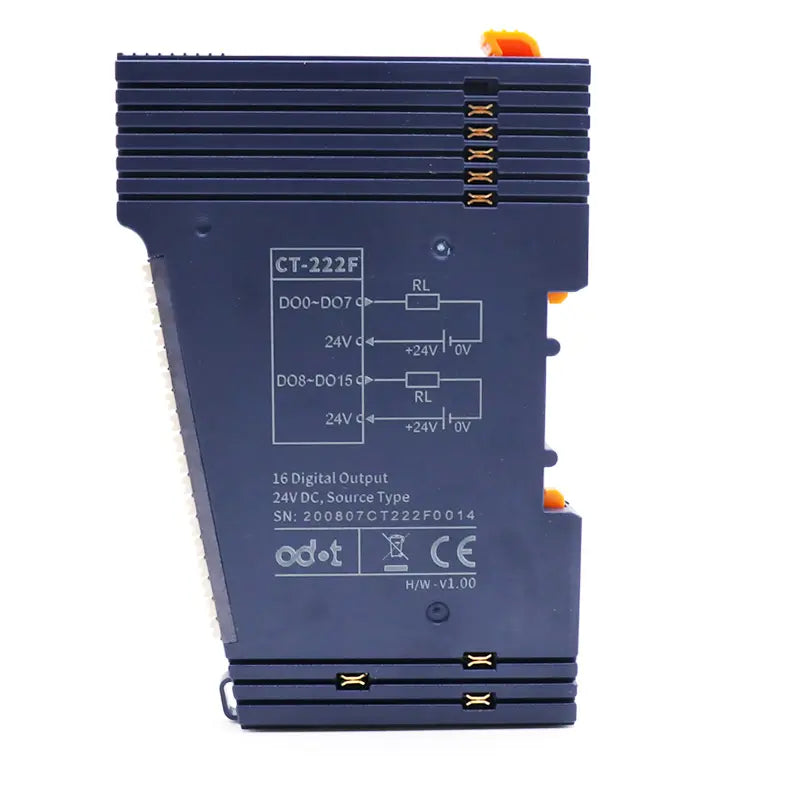

CT-222F: 16 channels digital Output, source, PNP, 24Vdc/0.5A

General Parameters

• Power:

  • Maximum Consumption: 175mA @ 5.0V DC

• Isolation:

  • Type: I/O to internal bus via opto-coupler isolation (3KVrms)

• Field Power:

  • Nominal Voltage: 24V DC
  • Voltage Range: 22-28V DC

• Wiring:

  • Maximum Size: 1.5mm² (AWG 16)

• Mounting Type:

  • Type: 35mm DIN-Rail

• Size:

  • Dimensions: 115 x 14 x 75mm

• Weight:

  • Weight: 65g

Environment Specification

• Operational Temperature:

  • Range: -40°C to 85°C

• Operational Humidity:

  • Range: 5% to 95% (No Condensation)

• Protection Class:

  • Class: IP20

Output Parameters

• Channel Number:

  • Channels: 16 channel source type output

• LED Indicator:

  • Indicator: 16 channel output LED indicator

• Rated Current:

  • Typical Value: 500mA

• Leakage Current:

  • Maximum: 10uA

• Output Impedance:

  • Maximum: < 200mΩ

• Output Delay:

  • OFF to ON: Max. 100us
  • ON to OFF: Max. 150us

• Protection:

  • Overtemperature Shutdown: Typical value is 135℃
  • Overcurrent Protection: Typical value is 1.1A
  • Short Circuit Protection: Supported
