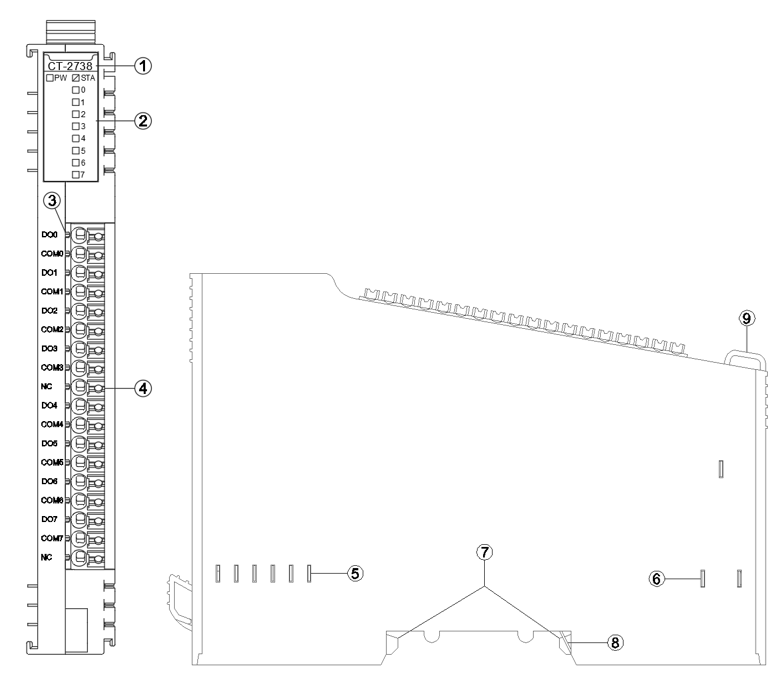

CT-2738 8 CHANNELS RELAY OUTPUT 1A/30VDC/30W

General Parameters

• Power:

  • Maximum Consumption: 250mA @ 5.0V DC

• Isolation:

  • I/O Channel to Internal Bus Isolation Voltage: AC 500V
  • Isolation Voltage Between Channels: AC 500V

• Field Power: Not used

• Wiring:

  • Maximum Size: 1.0mm² (AWG 17)

• Mounting Type:

  • Type: 35mm DIN-Rail

• Size:

  • Dimensions: 115 x 14 x 75mm

• Weight:

  • Weight: 65g

Environment Specification

• Operational Temperature:

  • Range: -40°C to 85°C

• Operational Humidity:

  • Range: 5% to 95% RH (No Condensation)

• Protection Class:

  • Class: IP20

Relay Output Parameters

• M/S/F



  Number: 8 channel Relay normally on output



• LED Indicator:

  • Indicator: 8 channel output LED Indicator

• Max. Switching Current:

  • Resistive Load: 1A
  • Inductive Load: 1A

• Max. Switching Voltage: 30V DC

• Max. Switching Power: 30W

• Switching Frequency:

  • Resistive Load: Max 2Hz
  • Inductive Load: Max 0.5Hz

• Contact Resistance: ≤100mΩ

• Output Delay:

  • ON to OFF: Max. 10ms
  • OFF to ON: Max. 10ms

• Mechanical Endurance: 2x10^7

• Electricity Endurance: 1x10^5

• Vibration: 10Hz to 55Hz, 1.5mm Double Vibration Amplitude

• Impact:

  • Stability: 98m/s²
  • Strength: 980m/s²
