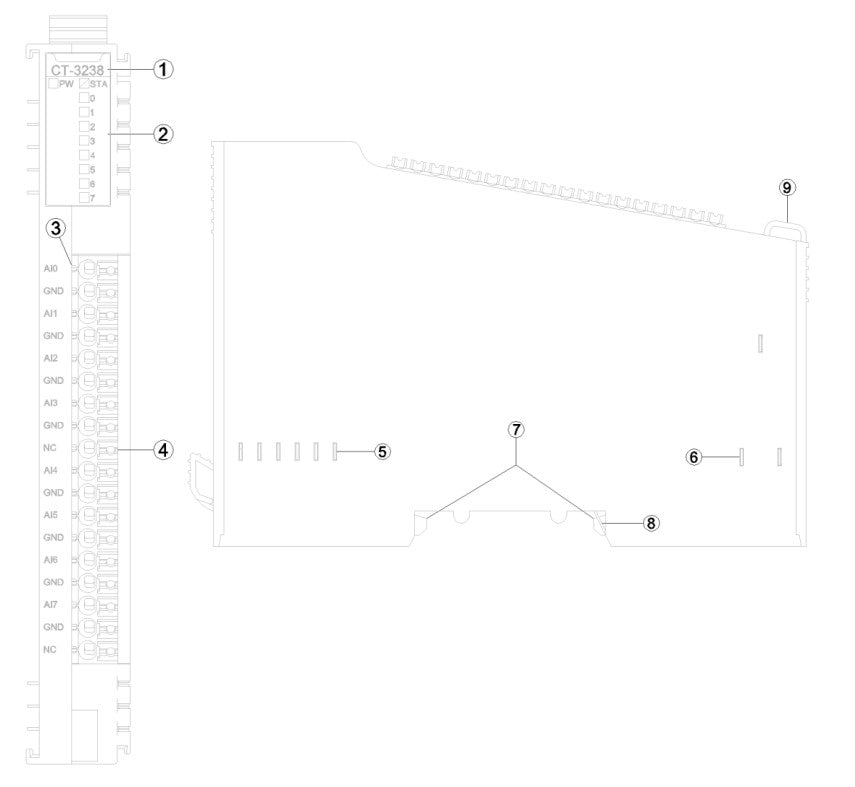

CT-3238:8 channels analog input

Technical Parameters

General Parameters

• Power:

  • Maximum Consumption: 65mA @ 5.0V DC

• IO Bus Isolation:

  • Type: I/O to internal bus via magnetic isolation (2.5KVrms)

• Power Isolation:

  • Type: DC-DC

• Wiring:

  • Maximum Size: 1.5mm² (AWG 16)

• Installation:

  • Type: 35mm DIN-Rail

• Size:

  • Dimensions: 115 x 14 x 75mm

• Weight:

  • Weight: 65g

Environmental Parameters

• Working Temperature:

  • Range: -40°C to 85°C

• Environmental Humidity:

  • Range: 5% to 95% (No Condensation)

• Protection Grade:

  • Class: IP20

Output Parameters

• Channel Number: 8 channels

• LED Indicator:

  • Indicator: 8 LED channel State indicator

• Input Range:

  • Maximum: 0 ~ 23.5 mA

• Resolution Ratio: 15 Bit

• Acquisition Precision:

  • ±0.3% full range @ 25℃
  • ±0.5% full range @ -20~70℃

• Sampling Rate: 20 ms / 1 channel

• Data Format: 16-bit signed integer
