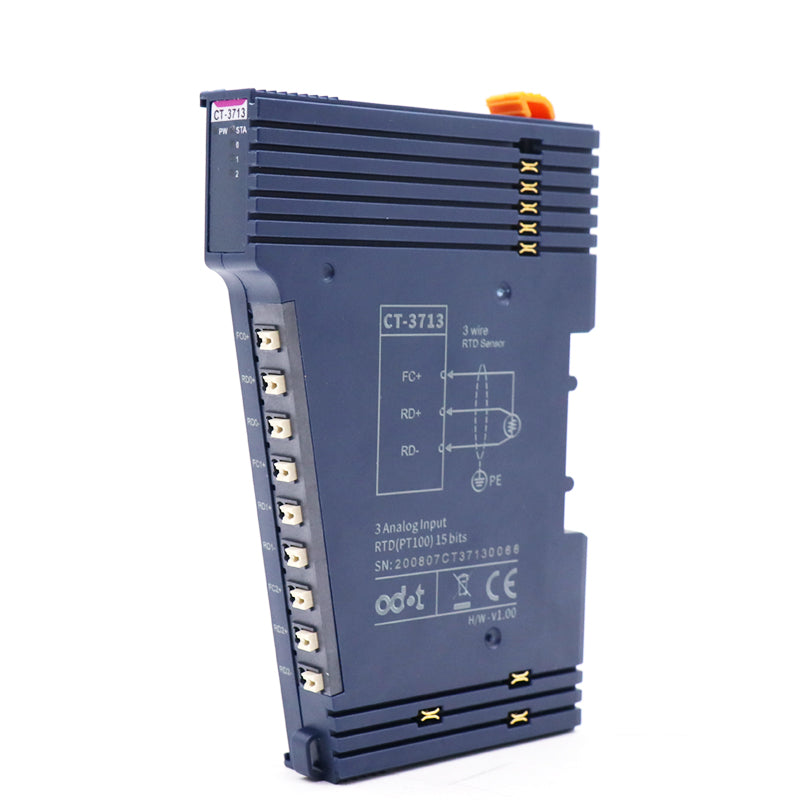

CT-3713:3 channels Analog Input,RTD(PT100)

Technical Parameters

General Parameters

• Power:

  • Maximum Consumption: 35mA @ 5.0V DC

• Isolation:

  • Type: I/O to internal bus via magnetic isolation (2.5KVrms)

• Field Power: Not used

• Wiring:

  • Maximum Size: 1.5mm² (AWG 16)

• Mounting Type:

  • Type: 35mm DIN-Rail

• Size:

  • Dimensions: 115 x 14 x 75mm

• Weight:

  • Weight: 65g

Environment Specification

• Operational Temperature:

  • Range: -40°C to 85°C

• Operational Humidity:

  • Range: 5% to 95% RH (No Condensation)

• Protection Class:

  • Class: IP20

Input Parameter

• Channel Number: 3 Channels

• LED Indicator: 3 Green LED

• Resolution: 15 bit

• Sensor Type: PT100

• Measurement Range: -240°C to 880°C

• Measurement Accuracy: 0.5°C

• Single Channel Conversion Time: Max. 21ms
