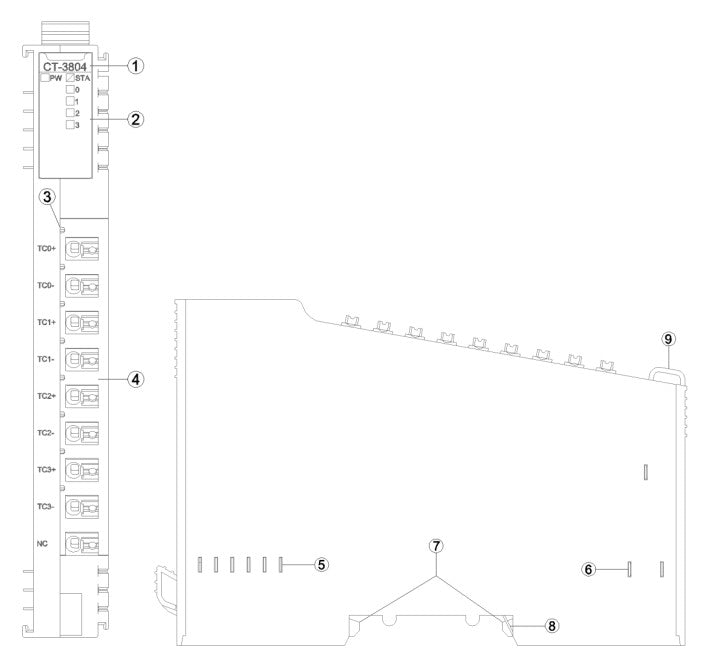

CT-3804:4 channels Analog Input,Thermocouple

CT-3804:4 channels Analog Input,Thermocouple

Regular price $301.60 AUD
Regular price Sale price $301.60 AUD
Sale Sold out

General Parameters:

  • Power: Max. 50mA @ 5.0Vdc
  • Isolation: I/O to internal bus via magnetic isolation (2.5KVrms)
  • Field Power: Not used
  • Wiring: I/O Wiring: Max. 1.5mm² (AWG 16)
  • Mounting Type: 35mm DIN-Rail
  • Size: 1151475mm
  • Weight: 65g

Environment Specification:

  • Operational Temperature: -40~85℃
  • Operational Humidity: 5%~95% RH (No Condensation)
  • Protection Class: IP20

Input Parameter:

  • Channel Number: 4 Channels
  • LED Indicator: 4 Input LED Indicators
  • Sensor Type: J/K/E/T/S/R/B/N type thermocouples
  • Acquisition Accuracy:
    • ±0.3% Full Scale @ 25℃
    • ±0.5% Full Scale @ -40~85℃
  • Single Channel Sampling Rate: Max. 50Hz

Measuring Range (℃):

  • J Type: -210~1200
  • K Type: -270~1370
  • E Type: -270~1000
  • T Type: -270~400
  • S Type: -50~1760
  • R Type: -50~1760
  • B Type: 0~1820
  • N Type: -270~1300
  • Data Format: 16-Bit Signed Integer (Integer)
