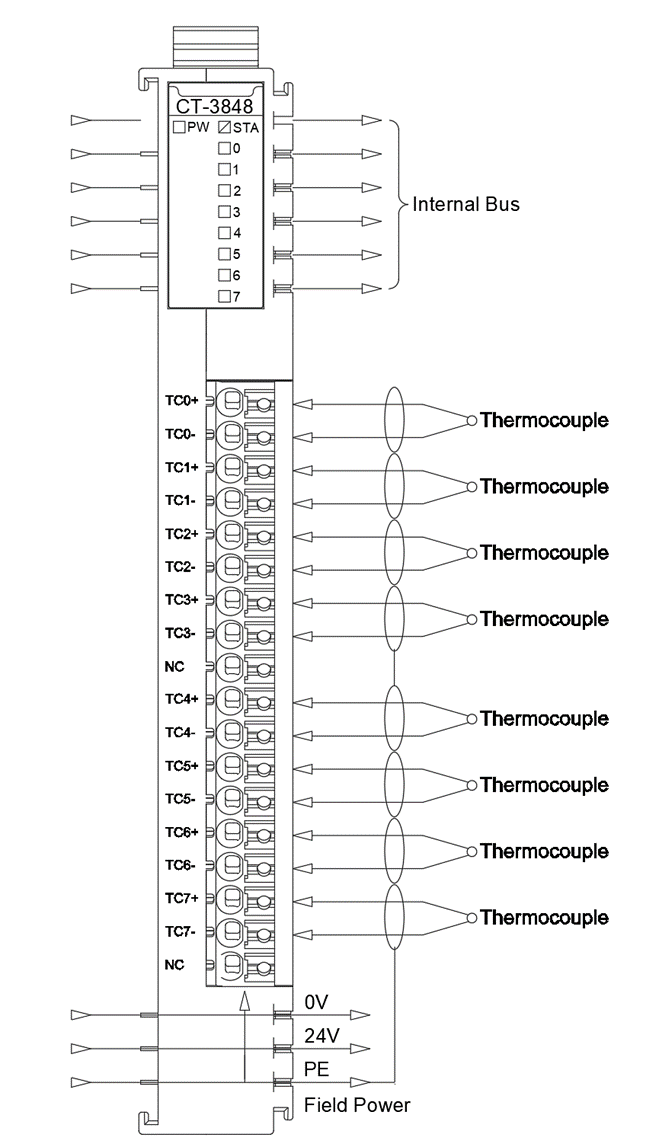

CT-3848 8 Channels Thermocouple

General Parameters

• Power: Max 60mA @ 5.0V DC
• Isolation: Magnetic isolation (2.5 KVrms) between I/O and internal bus
• Field Power: Not used
• Wiring: Maximum 1.0 mm² (AWG 17)
• Mounting Type: 35mm DIN-Rail
• Size: 115 × 14 × 75 mm
• Weight: 65 g

Environmental Specifications

• Operational Temperature: -40°C to 70°C
• Operational Humidity: 5% to 95% RH (No Condensation)
• Protection Class: IP20

Input Parameters

• Channel Number: 8 channels
• LED Indicators: 8 input LED indicators
• Sensor Type: J, K, E, T, S, R, B, N thermocouples
• Acquisition Accuracy:
  • ±0.3% Full Scale @ 25°C
  • ±0.5% Full Scale @ -40°C to 70°C
• Filter Level: Adjustable
• Data Format: 16-bit signed integer
