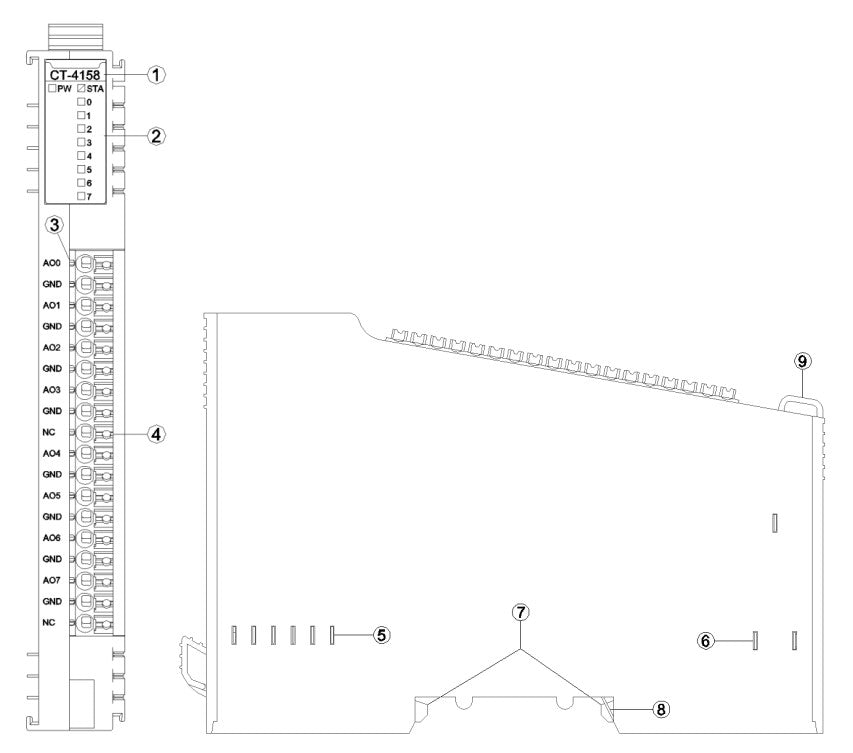

CT-4158:8 channels Voltage Output

Technical Parameters

General Parameters:

• Power: Max. 300mA @ 5.0Vdc
• Isolation: I/O to internal bus via magnetic isolation (3KVrms)
• Field Power: Not used
• Wiring: I/O Wiring: Max. 1.5mm² (AWG 16)
• Mounting Type: 35mm DIN-Rail
• Size: 1151475mm
• Weight: 65g

Environment Specification:

• Operational Temperature: -40~85℃
• Operational Humidity: 5%~95% RH (No Condensation)
• Protection Class: IP20

Output Parameter:

• Channel Number: 8 Channels voltage output
• LED Indicator: 8 Channels voltage output indicator
• Output Voltage Range: 05VDC, 010VDC, ±5VDC, ±10VDC
• Load Resistance: Max. 5kΩ
• Resolution: 16 bits
• Acquisition Accuracy:
  • ±0.1% (Full Scale) @ 25℃
  • ±0.3 (Full Scale) @ -40~85℃
• Sampling Rate: 1 ms / all channels
• Diagnose: Overtemperature/overcurrent status monitoring
• Protection Current: 20mA.
• Common Port: Common grounded output
