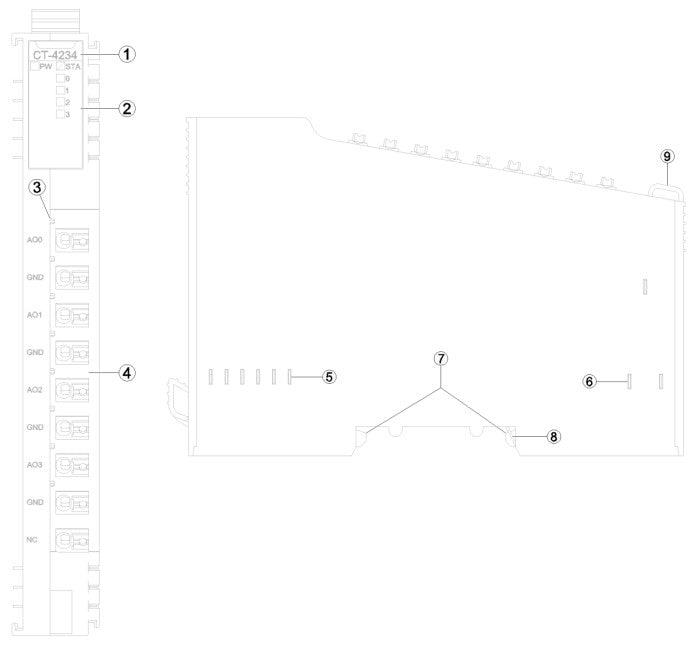

CT-4234:4 channels analog output

Technical Parameters

General Parameters:

• Power: Max. 25mA @ 5.0Vdc
• IO Bus Isolation: I/O to internal bus via magnetic isolation (2.5KVrms)
• Wiring: I/O Wiring: Max. 1.5mm² (AWG 16)
• Installation: 35mm DIN-Rail
• Size: 1151475mm
• Weight: 65g

Environmental Parameters:

• Working Temperature: -40~85℃
• Environmental Humidity: 5%-95% (No Condensation)
• Protection Grade: IP20

Output Parameters:

• Channel Number: 4 channels
• Resolution Ratio: 16-bit
• Output Range: 0-20mA/4-20mA
• Output Precision: >0.3%
• Diagnostic Function: Disconnection or overload, field power supply error
• Common Terminal: 0V grounded together, channels are not isolated
• Conversion Time: 2ms for all channels
• Load: Max. 1KΩ
