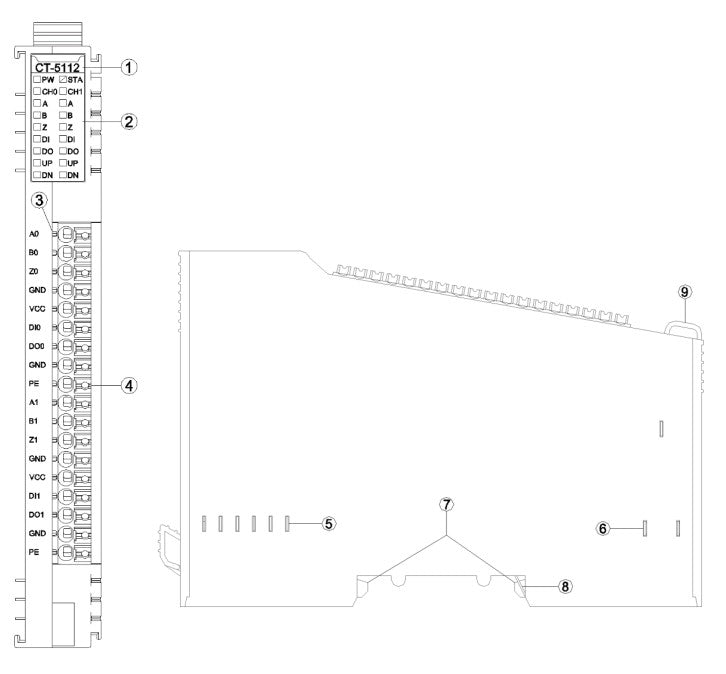

CT-5112: 2 channels encoder/24V input/Quadrature decoding

Technical Parameters

General Parameters:

• Power: Max. 60mA @ 5.0Vdc
• Isolation: I/O to internal bus via magnetic isolation (3KVrms)
• Field Power: Nominal: 24Vdc, Range: 20-28Vdc
• Wiring: I/O Wiring: Max. 1.5mm² (AWG 16)
• Mounting Type: 35mm DIN-Rail
• Size: 1151475mm
• Weight: 65g

Environment Specification:

• Operational Temperature: -40~85℃
• Operational Humidity: 5%~95% RH (No Condensation)
• Protection Class: IP20

Input Parameters:

• Channel Number: 2-channel encoder
• LED Indicator: 16 channel input LED indicator
• Encoder Signal Voltage Range: ABZ input standard 24Vdc, range ±10%
• Encoder Input Impedance: Internal pull-up or pull-down resistance 4.7K
• Encoder Filtering Time: Could be set, default value is 0.5 us
• Encoder Count Frequency: <1.5MHz
• Encoder Frequency Multiplication Mode: x1/x2/x4
• Encoder Measurement Function: Load speed or input signal frequency measurement
• DI Turn-on Voltage: Min. 5Vdc to Max. 28Vdc
• DI Turn-off Voltage: Max. 2.7Vdc
• DI Turn-on Current: Max. 5mA/channel @ 28V
• DI Input Impedance: >10.0kΩ
• DI Input Delay:
  • OFF to ON: Max. 3ms
  • ON to OFF: Max. 2ms
• DO Output Voltage: 24V, range ±10%
• DO Output Current: Max. 500mA
• DO Output Sink Current: Max. 5uA
