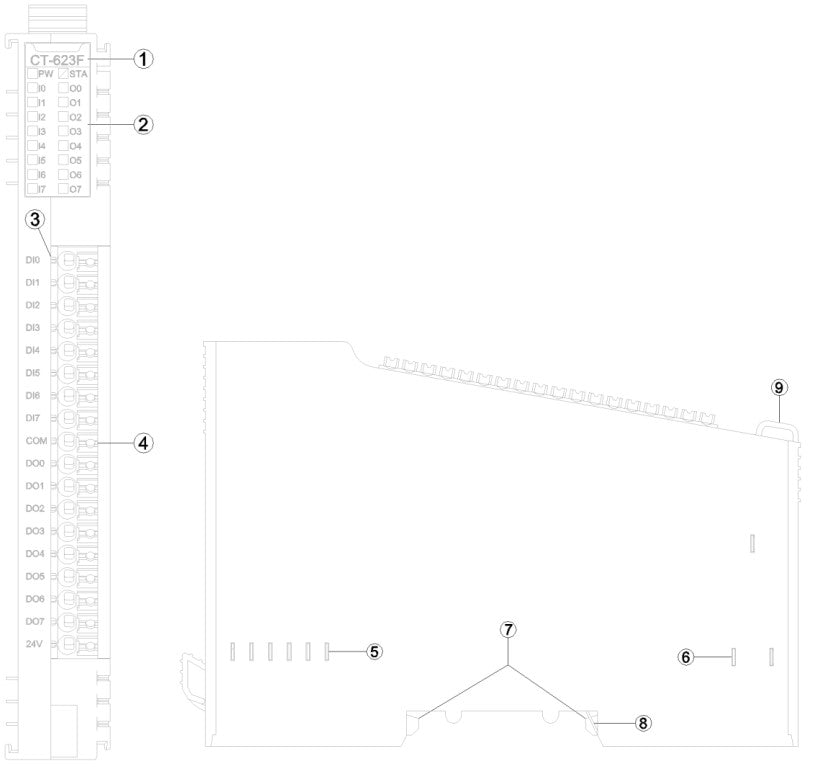

CT-623F: 8 DIGITAL INPUT&8 DIGITAL OUTPUT

CT-623F: 8 DIGITAL INPUT&8 DIGITAL OUTPUT

Regular price $153.40 AUD
Regular price Sale price $153.40 AUD
Sale Sold out

CT-623F Module Overview:

  • Digital Input:

    • 8-channel digital input supporting source or sink type configurations.
    • Input voltage: 0V/24VDC.
    • Supports connection to 2-wire or 3-wire digital sensors.
    • Each input channel supports a 32-bit counter with a frequency < 200Hz.
    • Signal maintenance function with adjustable maintenance time.
    • Configurable digital signal input filtering time and counter byte transfer order.
    • Independent counting mode and direction settings for each input channel.
  • Digital Output:

    • 8-channel digital output with output high level valid.
    • Output voltage: 24VDC.
    • Capable of driving various field equipment such as relays and solenoid valves.
    • Equipped with short circuit, thermal shutdown, and overvoltage protection functions.
  • Isolation:

    • Optocoupler isolation between module internal bus and field input/output.
  • Indicators:

    • 16 LED indicators for digital input and output channels.

Technical Parameters:

  • General Parameters:
    • Power: Max. 85mA @ 5.0Vdc
    • Isolation: I/O to internal bus: opto-coupler isolation (3KVrms)
    • Field Power: Nominal voltage: 24Vdc (Input range: 22~28Vdc)
    • Wiring: I/O wiring: Max. 1.5mm² (AWG 16)
    • Installation: 35mm DIN-Rail
    • Size: 1151475mm
    • Weight: 65g

Environment Specification:

  • Environmental Parameters:
    • Working Temperature: -40~85℃
    • Environmental Humidity: 5%-95% (No Condensation)
    • Protection Grade: IP20

Digital Input:

  • Channel Number: 8-channel source/sink type input
  • Indicator: 8 channel input indicators
  • Open Voltage:
    • High Input: Min. 10Vdc to Max. 28Vdc (Common: 0Vdc)
    • Low Input: Min. 0Vdc to Max. 14Vdc (Common: 24Vdc)
  • Close Voltage:
    • High Input: Max. 5Vdc (Common: 0Vdc)
    • Low Input: Min. 19Vdc (Common: 24Vdc)
  • Open Current: Max. 5mA/channel @ 28V
  • Input Impedance: > 7.5kΩ
  • Input Delay:
    • OFF to ON: Max. 3ms
    • ON to OFF: Max. 2ms
  • Prop Filter: Default: 10ms
  • Sampling Frequency: 500Hz
  • Count Frequency: < 200Hz

Digital Output:

  • Channel Number: 8 channel source type output
  • LED Indicator: 8 channel output indicators
  • Rated Current: Typical value: 0.5A
  • Leakage Current: Maximum value: 10uA
  • Output Impedance: < 200mΩ
  • Output Delay:
    • OFF to ON: Max. 100us
    • ON to OFF: Max. 150us
  • Protection Function:
    • Temperature Protection: Typical value 135℃
    • Protection Current: Typical value 1.1A
    • Short Circuit Protection: Supported
