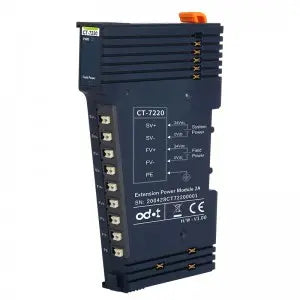

CT-7220: POWER SUPPLY EXTENSION MODULE 5V/2A

General Parameters:

• System Power:

  • Nominal: 24Vdc
  • Range: 9-36Vdc
  • Protection: Overcurrent protection, anti-reverse connection protection

• Module Internal Power Consumption:

  • 20mA @ 5VDC

• Internal Bus Supply Current:

  • Max: 2.0A @ 5VDC

• Isolation:

  • System Power to Field Power Isolation

• Field Power:

  • Power Supply: 22~28V (Nominal: 24Vdc)
  • Protection: Anti-reverse connection protection

• Field Power Supply Current:

  • Max. DC 8A

Environment Specification:

• Operational Temperature:

  • -40~85℃

• Operational Humidity:

  • 5%~95% RH (No Condensation)

• Protection Class:

  • IP20
